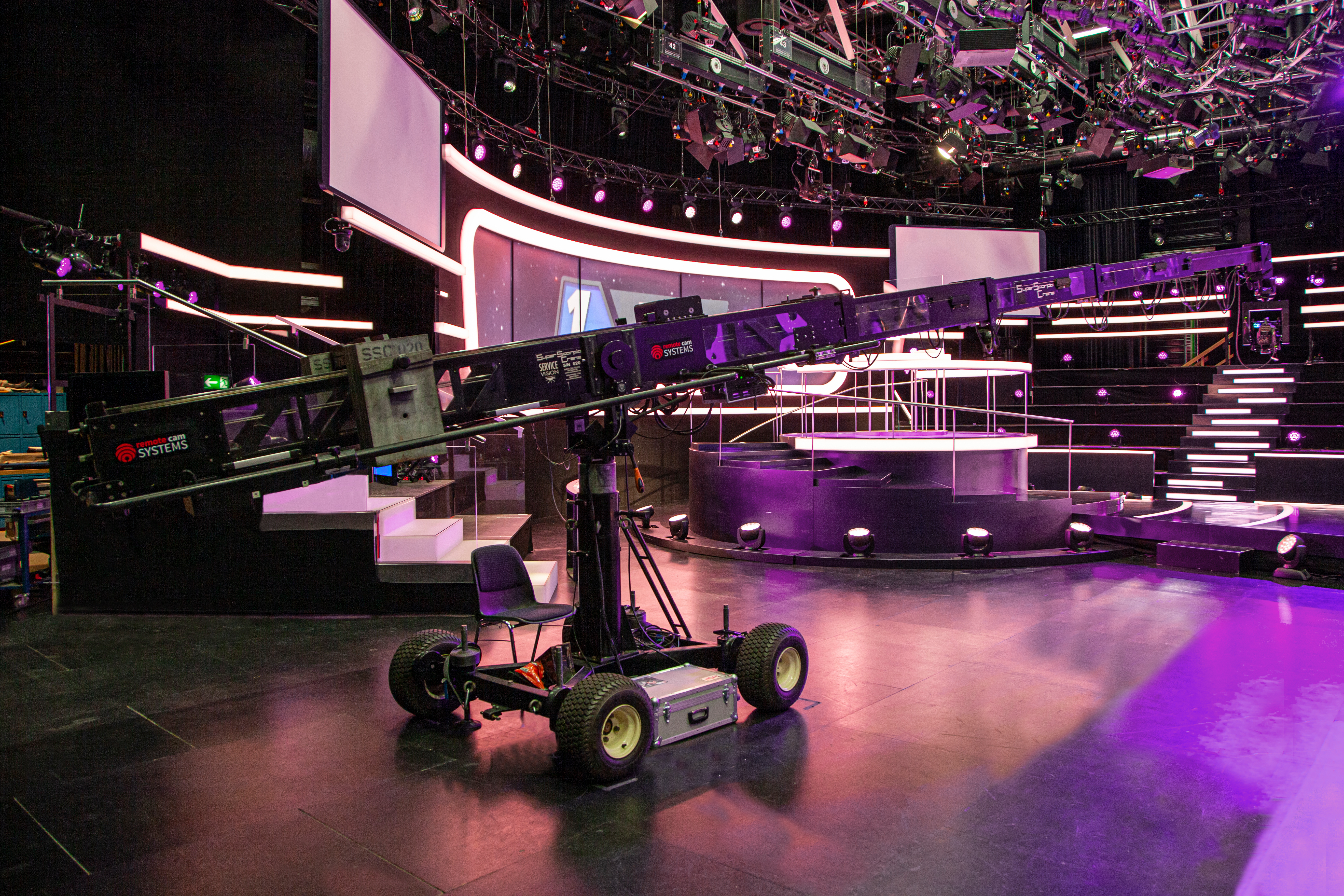

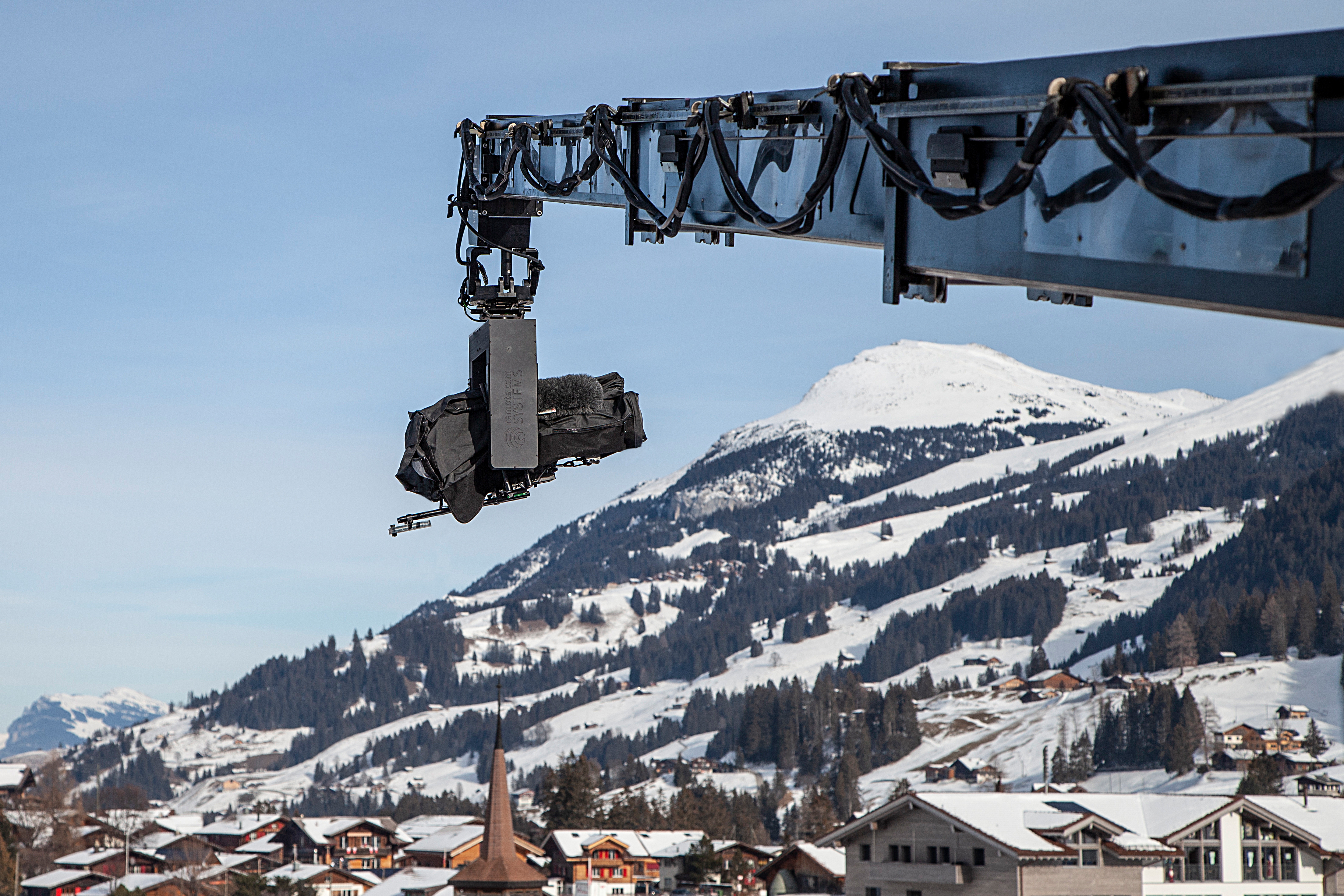

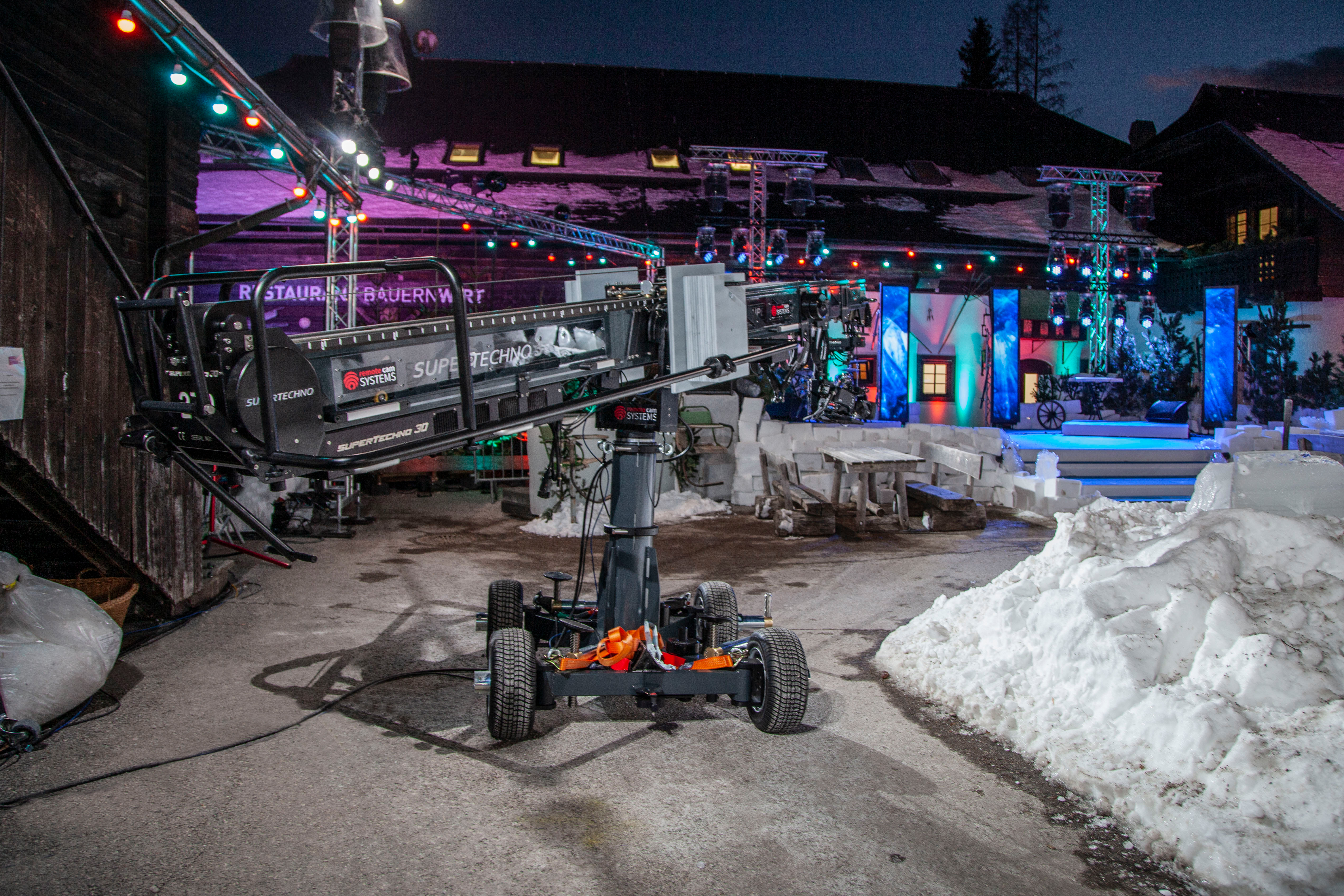

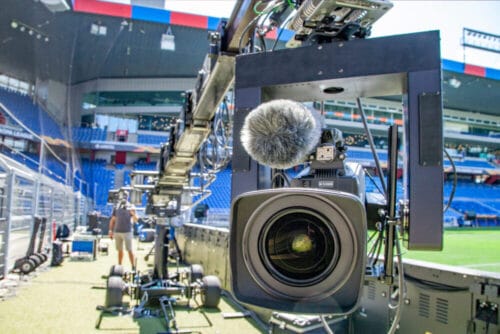

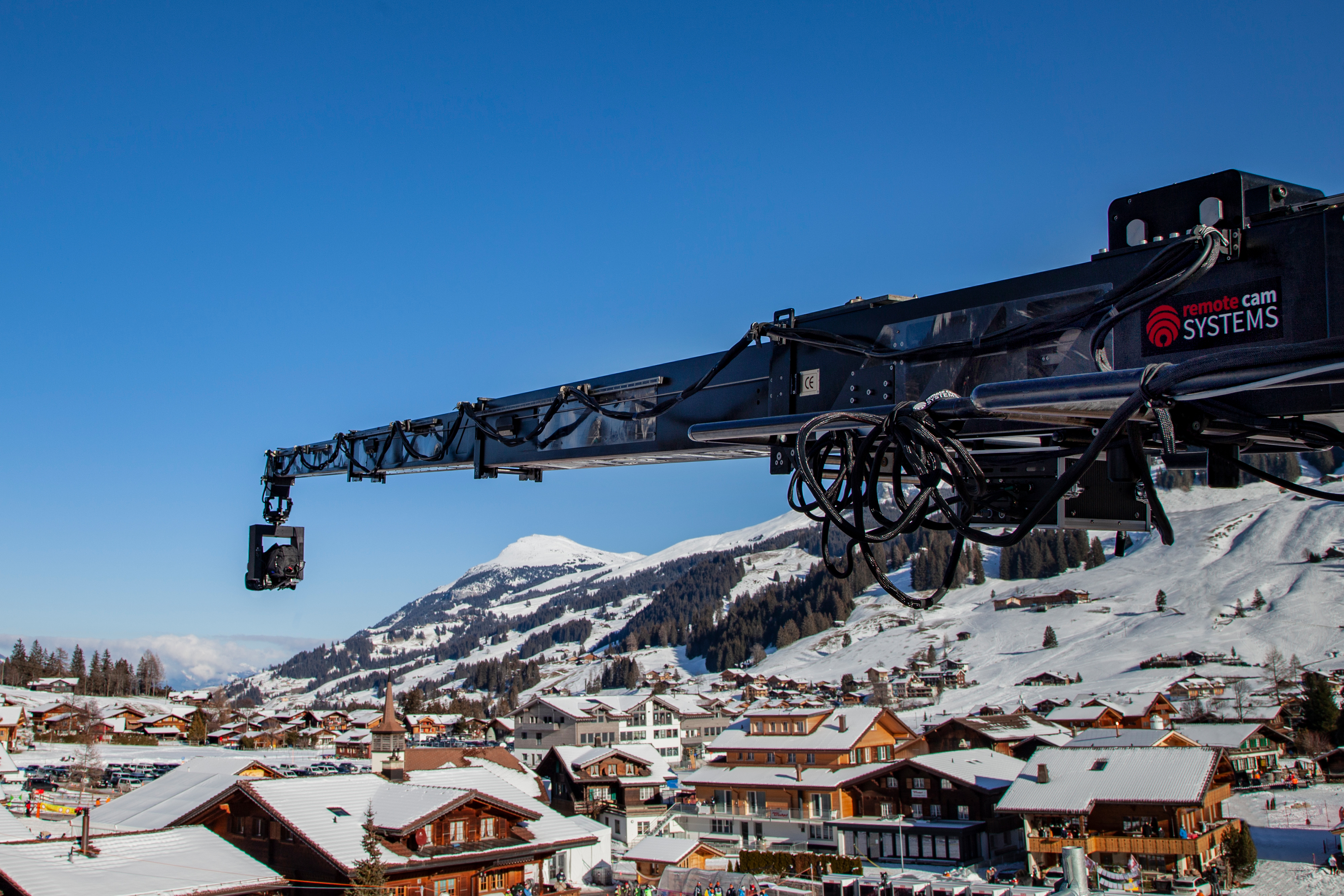

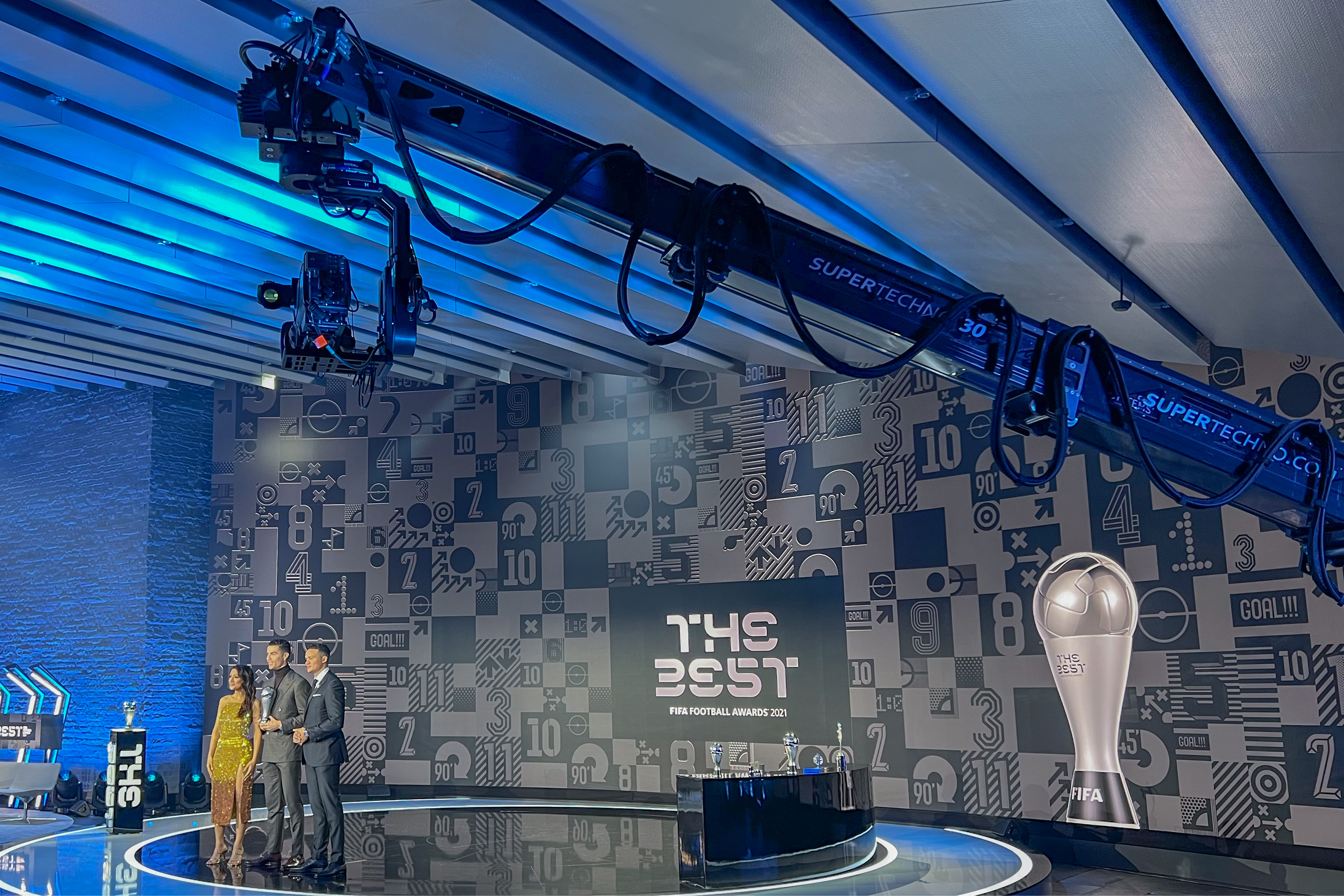

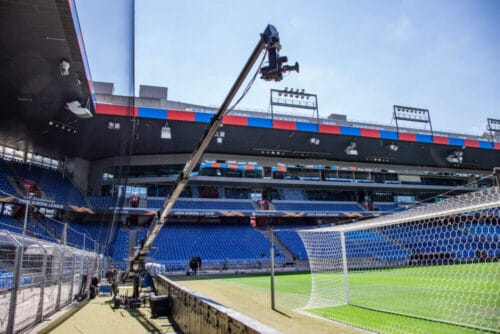

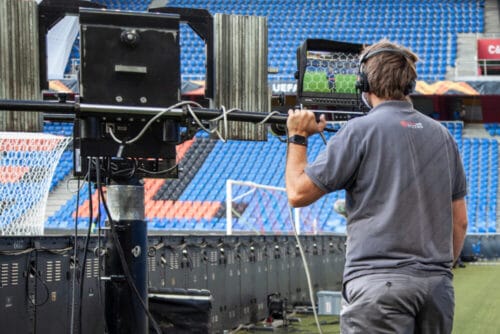

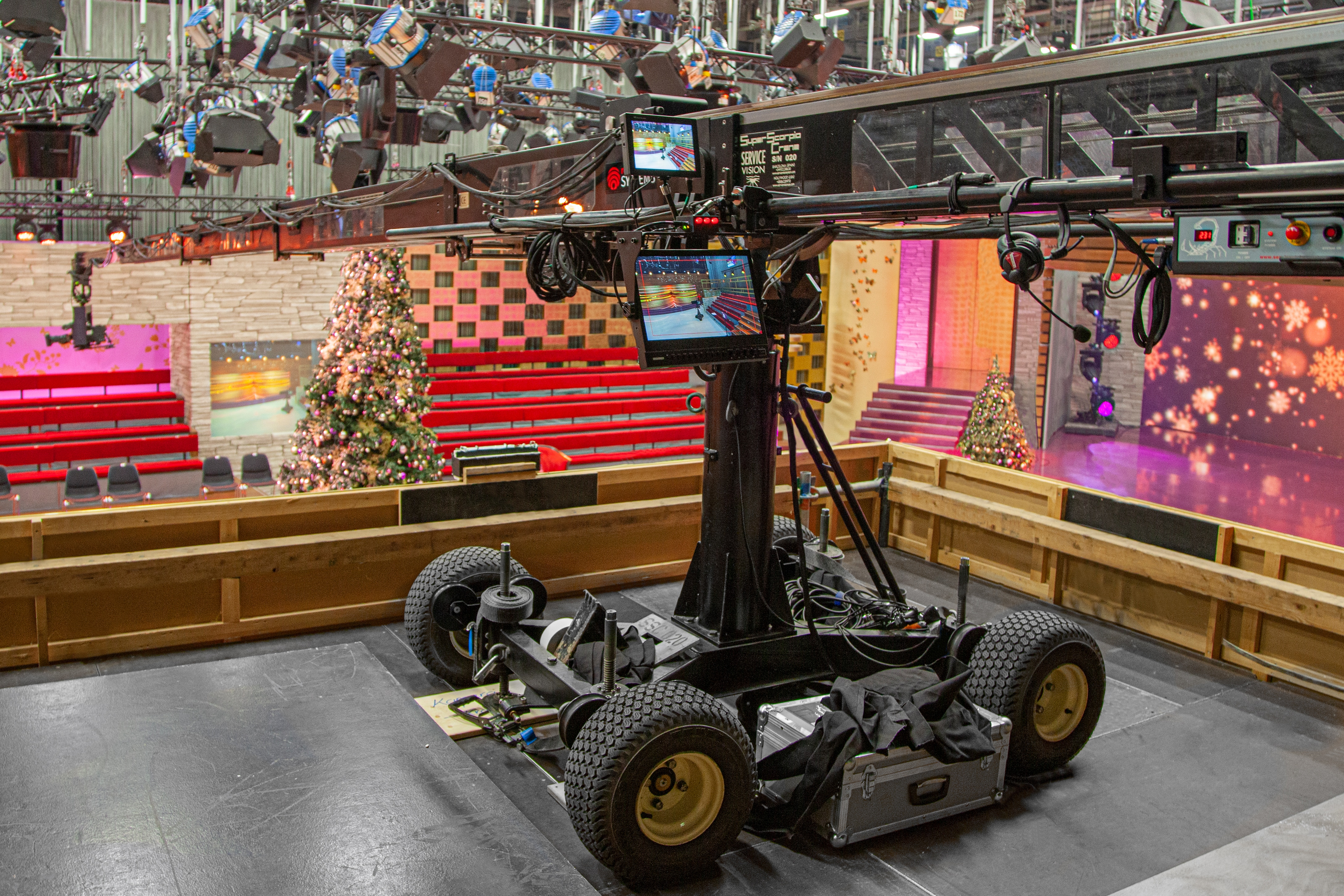

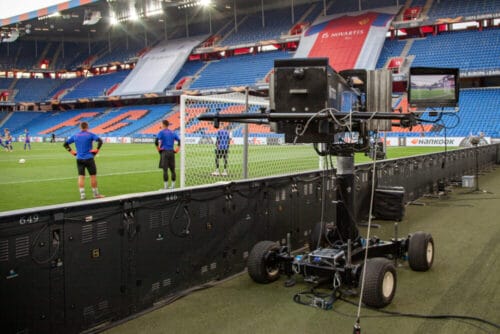

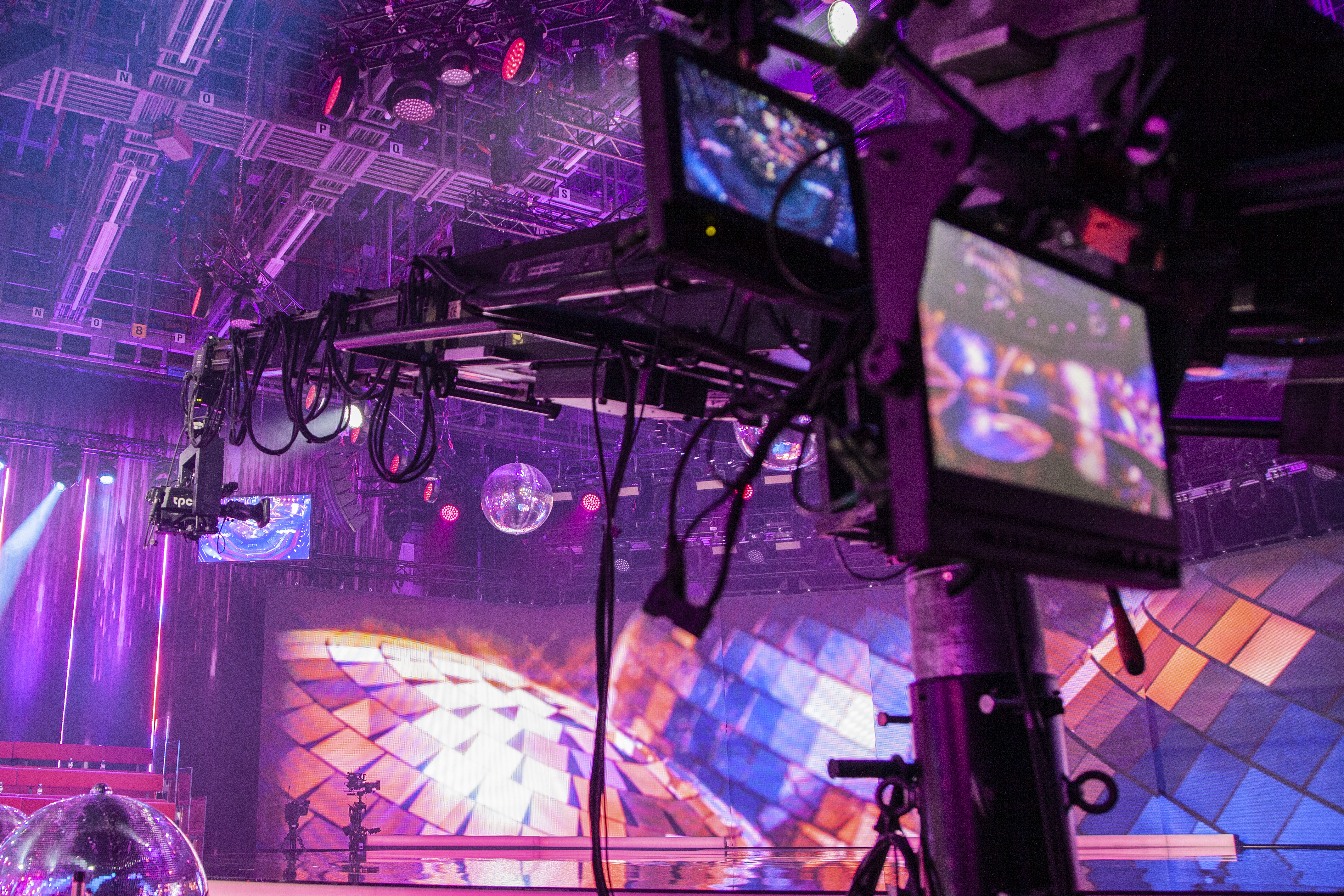

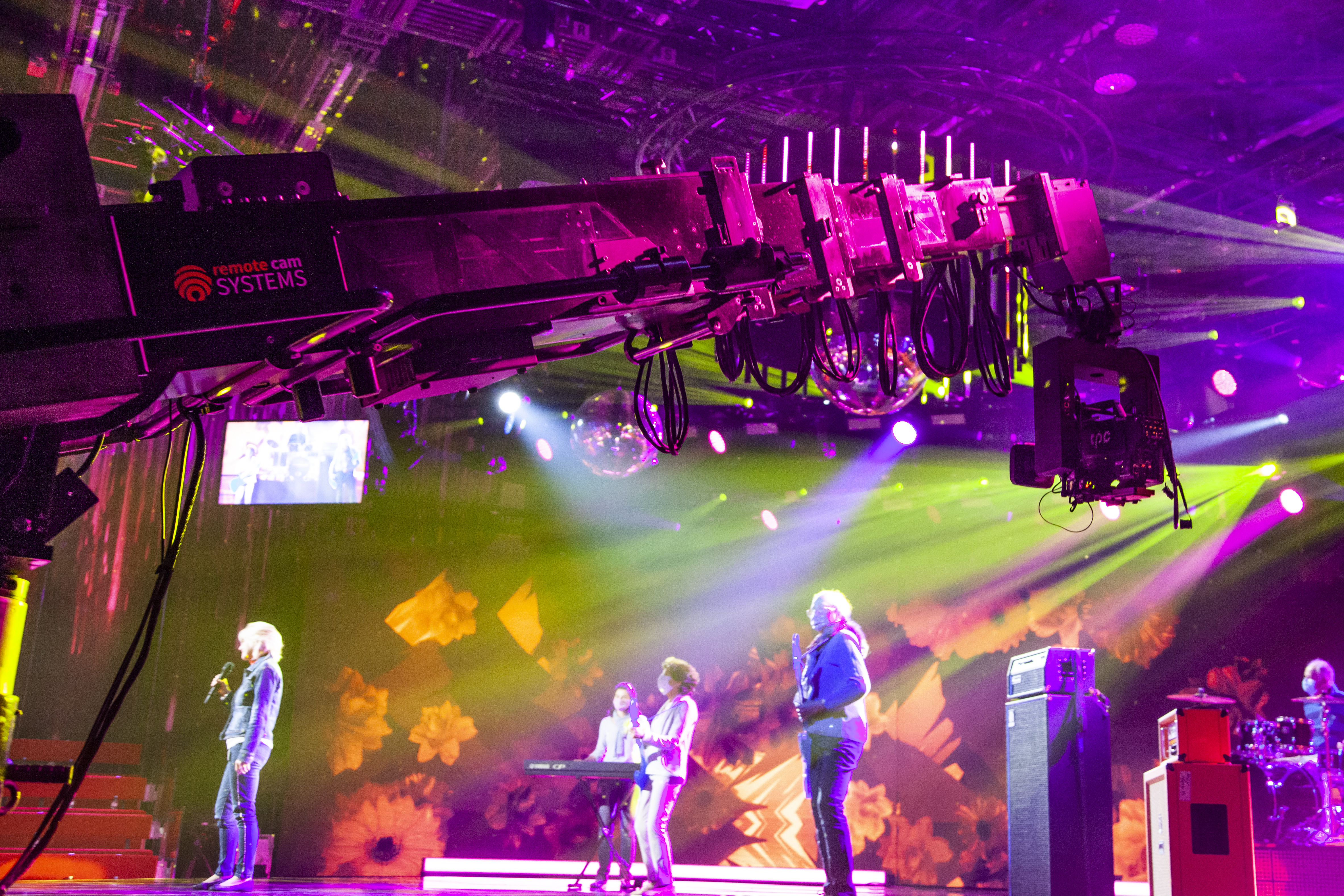

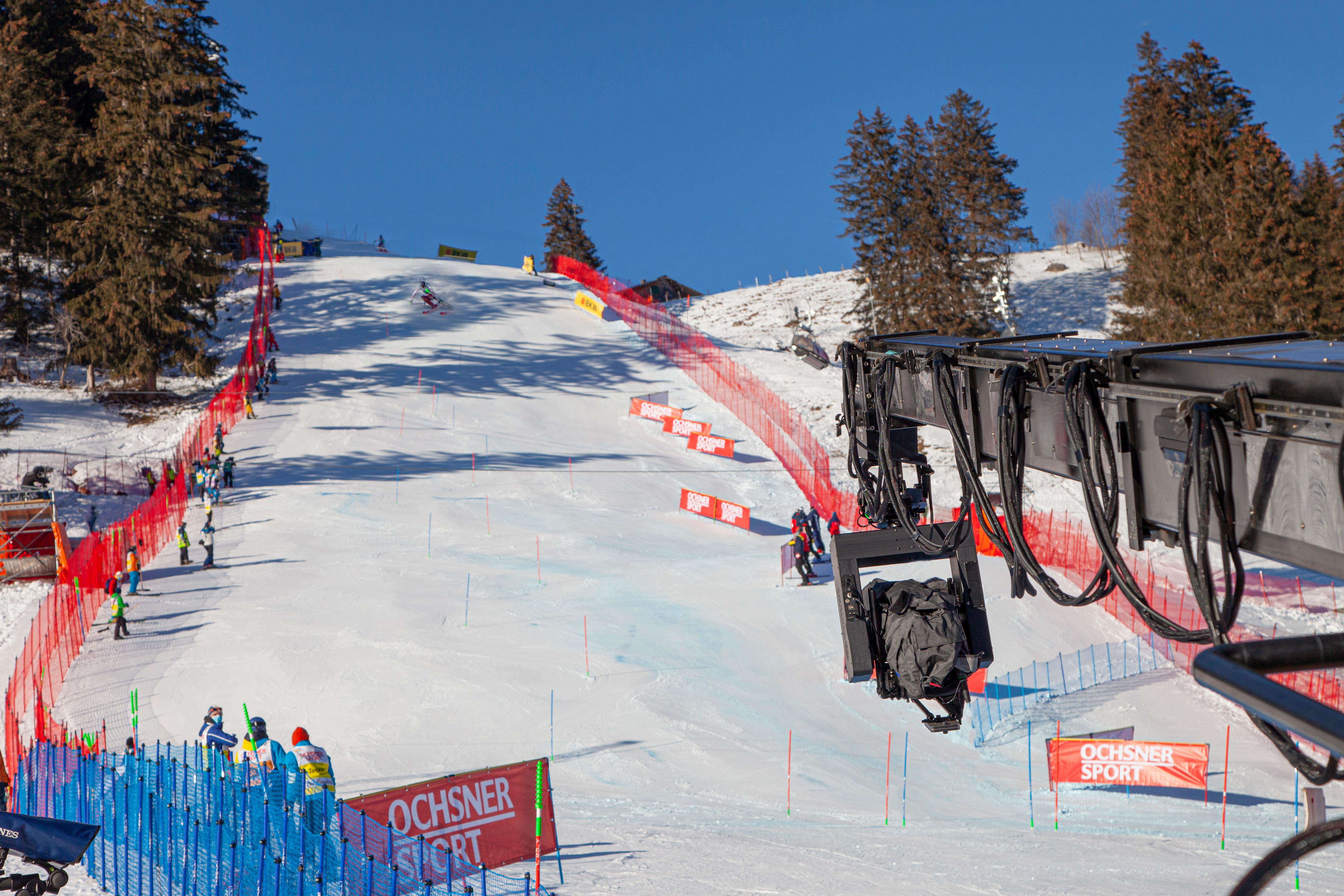

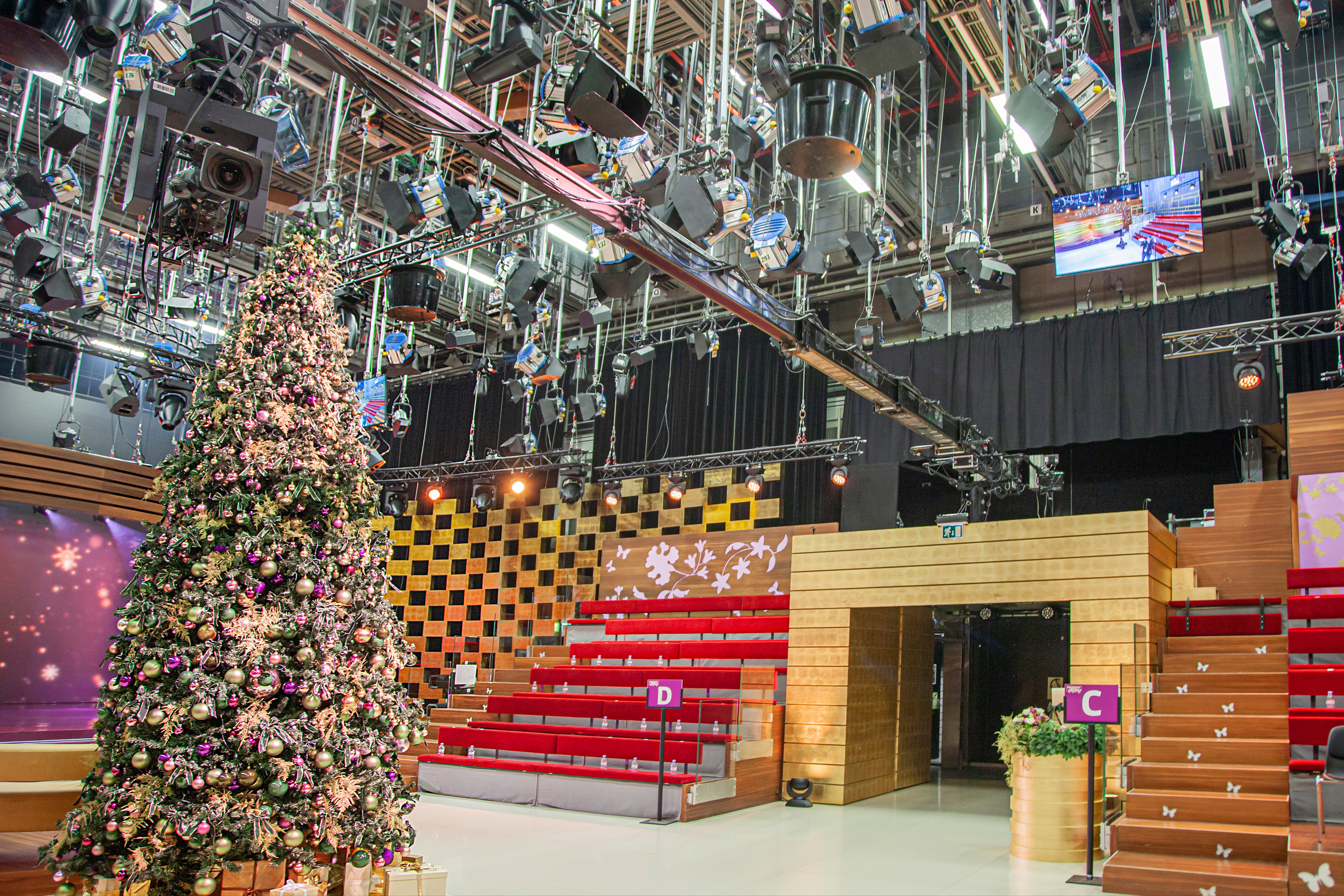

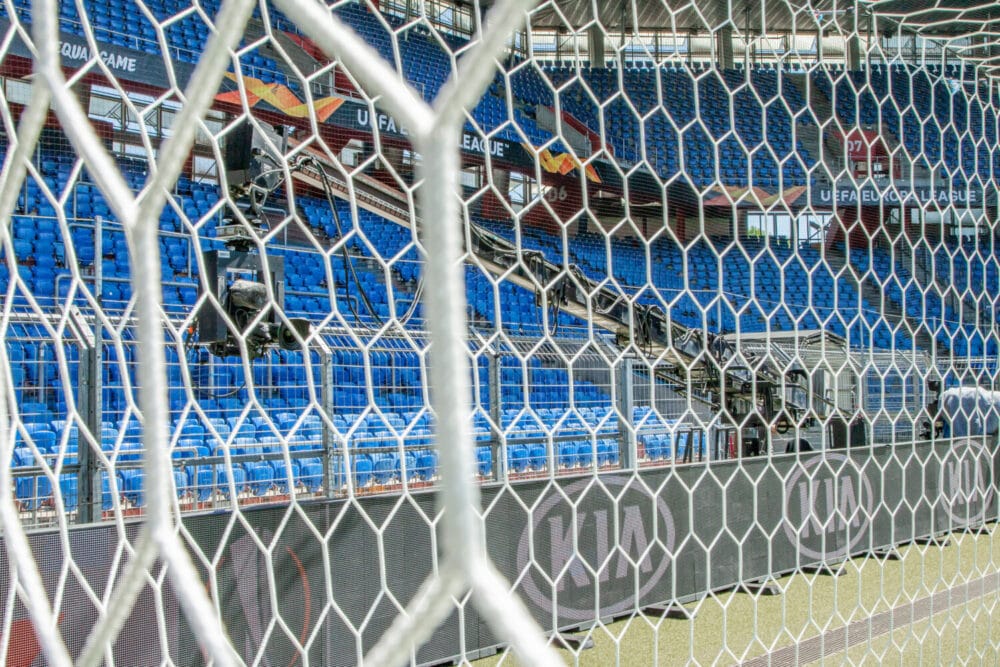

TelescopicCrane Scorpio 37′ for flexible shootings
Despite its size and robustness, the TelescopicCrane Scorpio 37 ‘ impresses in particular with its smooth running and ease of operation, both during slow and fast travel and telescoping speeds. When collapsed, the telescopic crane is extremely small, but can reach a length of almost 14 meters in a matter of seconds. Perfect for flexible and fast camera movements from any perspective.
Technical data: CameraCrane Scorpio 37′
Size TelescopicCarane Scorpio 37′
– Maximum length extended: 13.6 m
– Minimum length retracted: 4.7 m
– Rear length of the arm: 2.40 m
– Telescopic reach: 8.5 m
– Weight crane: 840 kg
– Weight maximum: 1500 kg
General data
– Autom. Compensator for horizontal movements
– Autom. Compensator for vertical movements
– Programmable limits for movements
– Noise reduction system
– Maximum load capacity: 35 kg
– Mechanical stroke for the telescopic column
– Power supply: 220 V or 110 V
