RCS RAILCAM BIG: THE RAIL CAMERA WITH A DIFFERENCE
Dynamic perspectives, smooth camera movements, particularly quiet operation and limitless flexibility: these are the advantages that make our new Railcam big rail camera the first choice in live broadcasting!
Technical finesse and practical advantages
The RailCam was developed in our company to meet the highest demands for recordings and live transmissions. The camera system covers multifunctional fields of application and was manufactured from modern materials such as aluminum and carbon. Thanks to these materials, a compact dimensioning with particularly light weight was achieved. The RailCam consists of three components: the dolly, the pluggable rails and a compatible camera. The dolly moves at speeds of up to 18km/h, and power can be supplied by cable or battery, giving you additional freedom. Lithium polymer batteries with a runtime of about 4-5 hours are used for battery operation.
Camera rails as desired: with the flexible rail system
Dolly and camera of our RailCam travel on a rail system that knows hardly any boundaries. Simply put together your individual rail line that exactly meets the requirements on site. Rail components in three different lengths between 2 meters and 50cm are available for the design. We also manufacture custom dimensions upon request. With a rail width of only 40cm, the elements can be installed below the stage floor, so that the Railcam seems to float effortlessly on its way. By the way: the rails are not only suitable for the floor, but can also be used at variable heights!
Proven control with great flexibility
The RailCam can be controlled and video and telemetry data transmitted either by cable or, even more conveniently, by radio signal. The dolly can be individually programmed to automatically travel certain routes – including set stopping points. Our experienced employees take over both the construction of the rail track and the control of the RailCam. The recordings of the rail camera can be ideally integrated into live broadcasts or studio recordings.
Technical specifications
RCS RailCam big
- Maximum speed of 18 km/h (high speed on request)
- Cable or battery operation possible
- Endpoints programmable by software
- Maximum operating time per battery charge 4 – 5 hours
- Maximum camera weight 16 kg

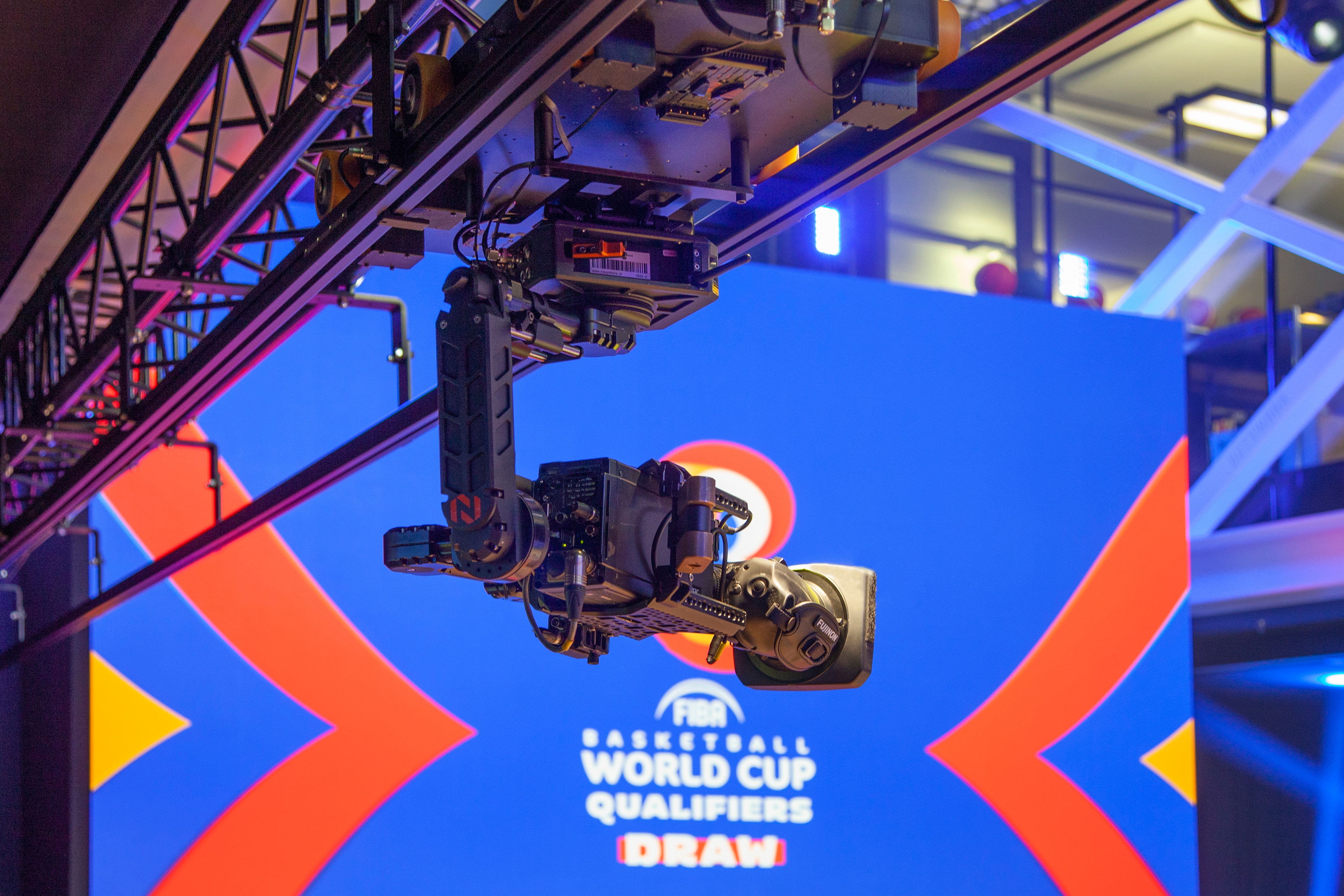

- 3 axis gyro stabilized remote head
Control
- Joystick control for dolly
- Joystick control for the remote head
- Speed control for pan / tilt / roll and zoom
- Camera zoom control
- Focus control of the camera
- Monitors for camera operator
Rails
- Width 40cm, height 12cm ( black anodized )
- Weight 4kg per meter
- Standard lengths 2m / 1m / 50cm ( special lengths possible )
