RCS REMOTEHEAD 2-AXES BIG: OUR FLEXIBLE CAMERA SOLUTION Speichern

Our answer to images from the most diverse perspectives is called RCS RemoteHead large. Due to the flexible camera movement, the system is suitable for almost any event. Thanks to the modern RemoteHead suspension device, spectacular shots can be taken even from lofty heights.

Gimbal

Technical progress for the RCS RemoteHead 2-axes big

The RCS RemoteHead large is manufactured directly in our Swiss headquarters in Aadorf. For the construction, we rely on modern building materials such as carbon, aluminum and ABS plastic. These materials keep the weight down while providing a beautiful system design. The 2 Axis RemoteHead has stabilized both the Tilt and Pan axes. Thus, the focus is on the two most important axes, making the RemoteHead somewhat narrower and more manageable. Thanks to modern suspension equipment, the RemoteHead can be mounted at lofty heights, resulting in spectacular shots.

Flexibility made to measure

It was important to our engineering team that the camera could be adapted to the specific needs of our customers. Whether the camera is to be placed on a stage scaffold or hanging from the ceiling in a studio, our engineers can attach the RemoteHead to the desired location with their usual professionalism, offering the images you want for your event or TV production.

Proven control with great flexibility

The RCS RemoteHead is controlled via a remote control.

RCS_Gimbal
2_Achsen_Gimbal
RemoteHead
Gimbal_2Achsen
RCS_Gimbal

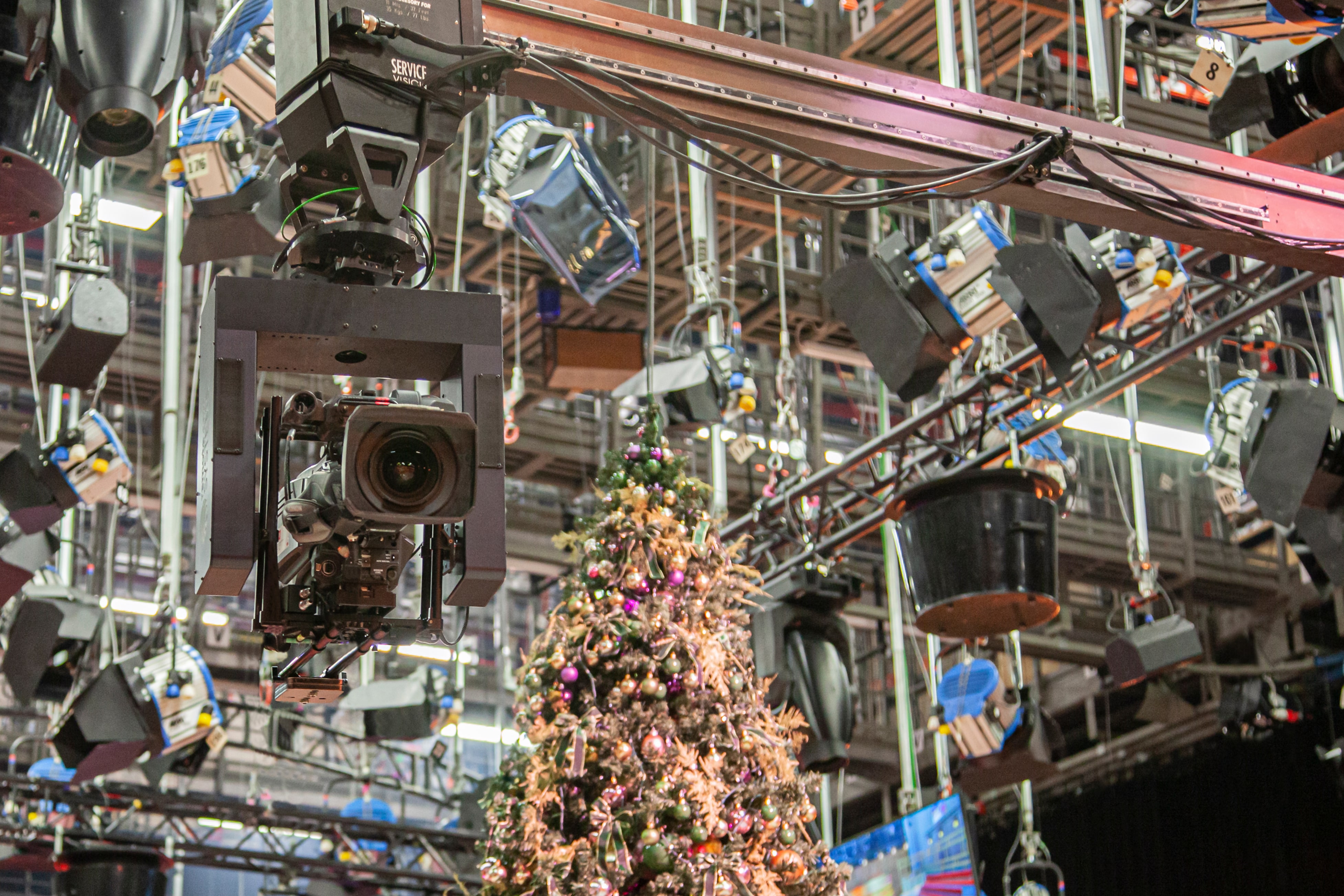

Kamerakran_Happy_Day
RCS_Gimbal

Technical specifications

RCS RemoteHead

  • 2 axes IMU stabilization
  • 2 x 6 axis gyro, stabilization on all axes
  • Length: 130mm, Width: 410mm, Height: 410mm
  • Gimbal weight 7kg
  • Maximum camera weight 16 kg
  • Max.camera size of 650mm x 320mm
  • Requires 12 – 16 volt power supply
  • Software MAC or PC
  • 3G SDI slip ring for video transmission
  • 2 RJ 45 ports for network TCP-IP
  • 2 Lemo power connectors 12 Volt for camera or accessories (maximum 8 A)
  • – Control via network UDP protocol

Control

  • Length: 405mm, Width: 180mm, Height: 85mm
  • Touch display 3.2 inch
  • Power supply via network RJ45 POE 24 Volt – Joystick control for PAN / TILT
  • Speed control for pan / tilt and zoom
  • Zoom control via zoom wipe
  • Focus control
  • PAN / TILT / ZOOM / FOCUS Invertible
  • Zoom compensation for pan / tilt adjustable
  • Zoom limit adjustable

RemoteHead

  • 4k support through fiber optic slip ring or 12G SDI
  • Augmented reality or virtual reality protocol support – Zomm / Focus control for Canon or Fujinon lenses
  • Zoom / focus control via motors for film cameras

Downloads:

Datasheet-RemoteHead_2-axes_big
